Advanced Programmable Switches (APS®)

Discover the full potential of the P4-programmable Intel® Tofino™ switching ASICs

Request

Designed and Made in Europe

All our next generation APS switches are designed and produced in Europe. Our designs are done by European experts who have a track record of designing high-end networking products for several of the worlds’ largest networking companies. Core components like the printed circuit boards (PCBs) for our switch boards, compute boards and timing boards come from Europe and also the soldering work is done in Europe complying to the strictest environmental standards. The same counts of our mechanical parts. Our switches are designed according to the security by design principles and we have traceability of all components used in our products from a hardware and software perspective.

APS2112D

The APS Networks® APS2112D switch comes with the high-speed programmability of the Intel® Tofino™ 1 dual pipeline 2.0Tb/s network ASIC in a unique half-width switch design, offering the smallest form factor Tofino™-based switch available (6x 25Gb/s SFP28 and 6x 100Gb/s QSFP28 ports).

APS2140D

The APS Networks® APS2140D switch combines high speed programmability of the Intel® Tofino™ 1 network ASIC with the versatility of the Intel® STRATIX® 10 FPGA with HBM (High-Bandwidth Memory) data accelerator for packet processing, communication service providers and enhanced network security requirements. The APS2140D is a high-end fully programmable network appliance for use cases that require high throughput with powerful processing.

APS7232Q

The APS Networks® APS7232Q switch is a spine or TOR switch for high rate data solutions using the P4 programming language. The APS7232Q enables enterprise L2/L3 switching across the 32x QSFP-DD ports at line rate and supports 10/25/40/50/100/200 and 400Gb/s data rates on all ports.

APS7232Q

Modular Designs

When selecting our new switch models, customers can make a choice of what type of CPU board they would like depending on the application or functionality they want to run on the switch. We have a choice of several different compute boards ranging from the Intel Atom C3538 4-core CPU for highest power efficiency and smallest compute requirements to the 4-core Ice Lake D-1713NT and the 8-core Ice Lake D-1736NT for compute intensive use cases.

All our new models can be ordered with or without our unique PTP module and we do have a choice of AC & DC power supply unit (PSUs) with front to back (port to power) and back to front (power to port) airflow options, depending on how you want to install the switch.

All switches of this model family are spine or TOR switches for high rate data solutions using the P4 programming language. The APS6232D enables enterprise L2/L3 switching across the 32x QSFP28 ports at line rate and supports 10/25/40/50 and 100Gb/s data rates on all ports. Combined with internal CPU Ethernet connectivity, a range of CPU processors and optional PTP, this family is ideal for the development of P4 enabled solutions at an affordable price.

APS6232D APS6232D
APS6132D

The APS Networks® APS6132D enables enterprise L2/L3 switching across the 32x QSFP28 ports at line rate and supports 10/25/40/50 and 100Gb/s data rates on all ports.

APS6132Q

The APS6132Q enables enterprise L2/L3 switching across the 32x QSFP28 ports at line rate and supports 10/25/40/50 and 100Gb/s data rates on all ports.

Power Efficiency

The switches are equipped with the most efficient Titanium grade power supplies and further measures were taken whilst designing the switches to reduce power consumption by choosing the used components wisely.

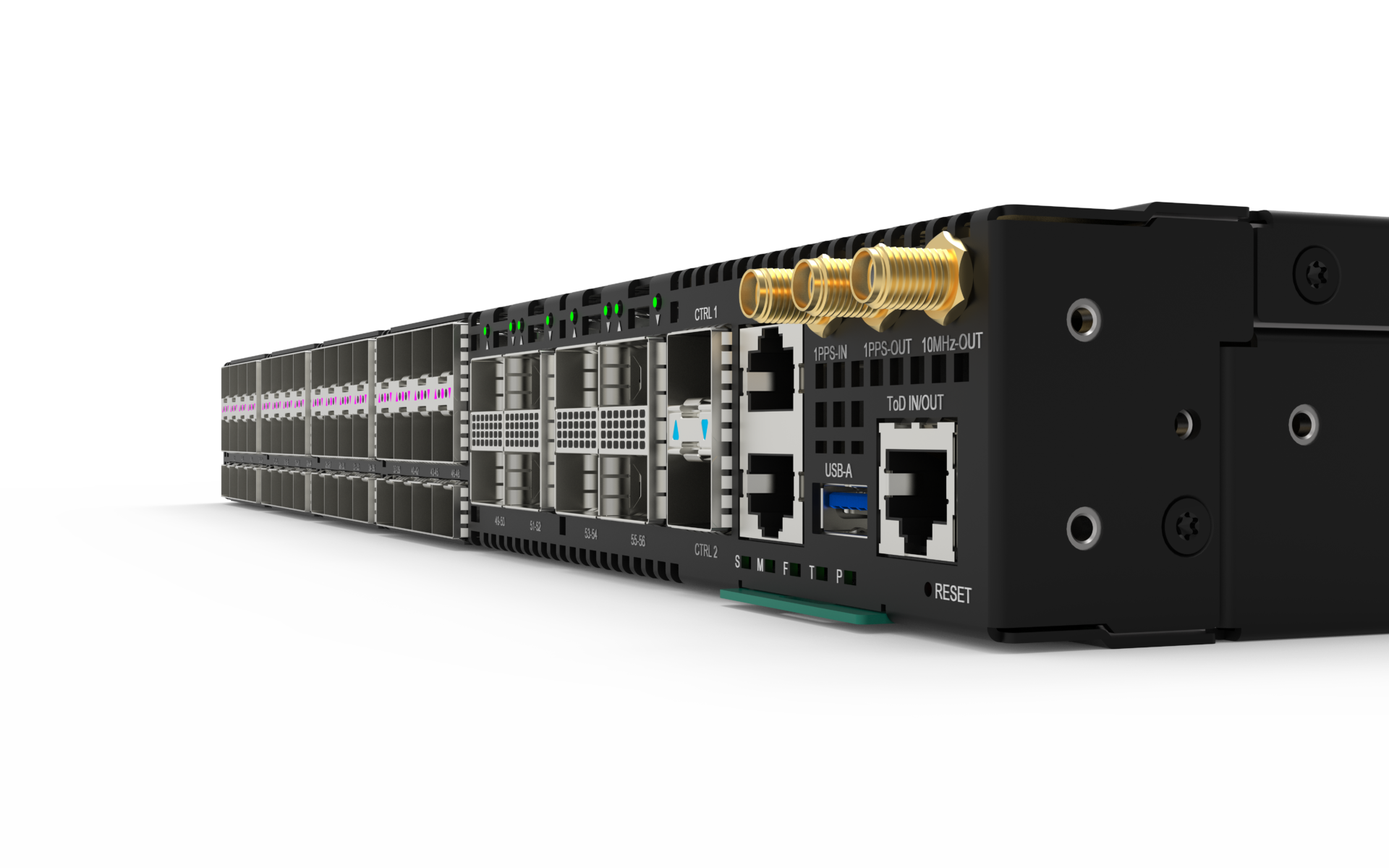

APS2156D

Both of these units are TOR switches for enterprise networks or security solutions using the P4 programming language. The APS Networks® APS2156D enables enterprise L2/L3 switching across the 48x SFP28 ports and the 8x QSFP28 at line rate and supports 10/25/40/50 and 100Gb/s data rates. Combined with internal CPU Ethernet connectivity, a range of CPU processors and optional PTP, the APS2156D is ideal for the development of P4 enabled solutions at an affordable price whilst providing excellent connectivity to servers and uplink networks.

APS2156D-D

The APS Networks® APS2156D-G enables enterprise L2/L3 switching across the 48x SFP28 ports and the 8x QSFP28 at line rate and supports 10/25/40/50 and 100Gb/s data rates. This unit is designed for multigig data rates which enable 10/100/1000Mb/s port speeds on the SFP28 ports. Combined with internal CPU Ethernet connectivity, a range of CPU processors, optional PTP and the ability to implement MacSec on the SFP28 ports the APS2156D-G is ideal for the development of P4 enabled solutions whilst providing secure connectivity to servers and uplink networks.
