APS6132Q

Advanced Programmable Switch

APS6232D

APS Networks®

APS6132Q

Request

Product Description

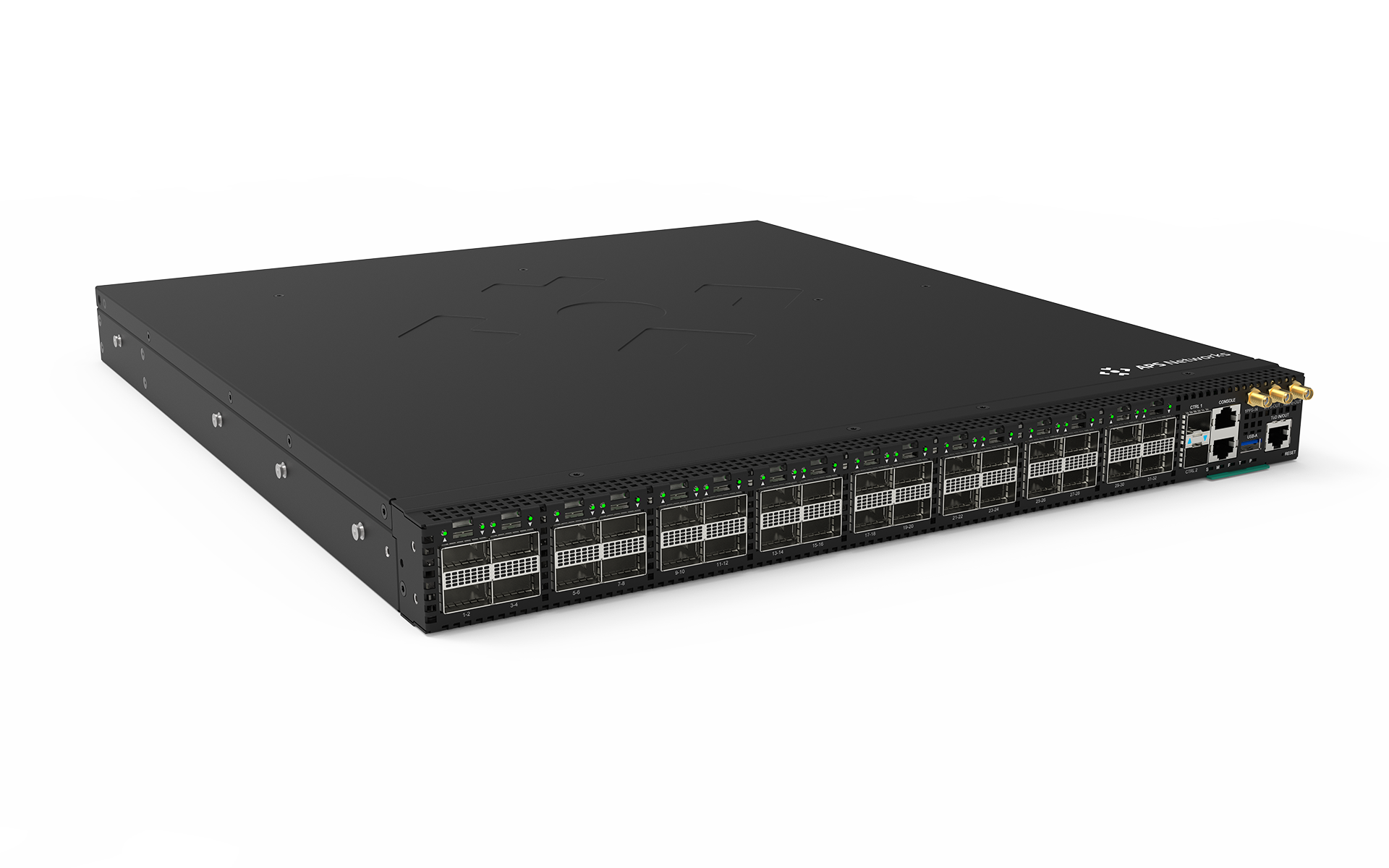

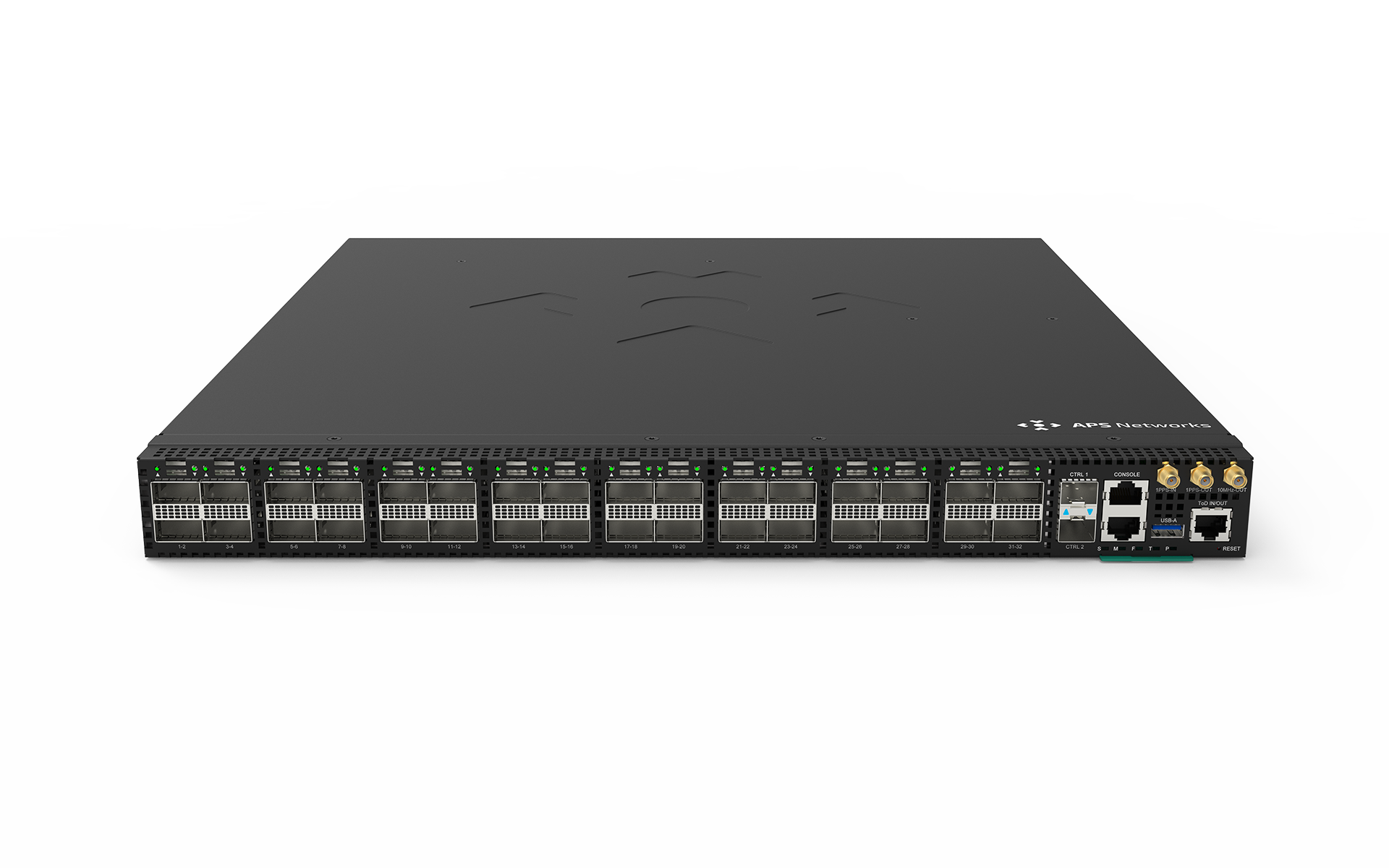

The APS Networks® APS6132Q switch is a spine or TOR switch for high rate data solutions using the P4 programming language. The APS6132Q enables enterprise L2/L3 switching across the 32x QSFP28 ports at line rate and supports 10/25/40/50 and 100Gb/s data rates on all ports. Combined with internal CPU Ethernet connectivity, a range of CPU processors and optional PTP, the APS6132Q is ideal for the development of P4 enabled solutions requiring additional pipeline resources (quad pipeline) at an affordable price.

APS6132Q

Target industries: Broadcast & Media, Security, Enterprise.

APS6132Q

Use Cases

  • Enterprise Networking: Layer 2/3 P4 programmable network switch
  • Security applications: Network Packet Broker / Layer 4 Load Balancer / P4 Firewall
  • Media & Broadcast: Seamless switching backbone router

Main Features

  • Intel® Tofino™ 1 quad pipeline
    3.2Tb/s network ASIC
  • Intel® ATOM or Xeon D-1700 CPU Processor
  • 32x 100Gb/s QSFP28 ports
  • OpenBMC Management

Benefits

  • Fully programmable P4 architecture
  • Quad pipeline 3.2Tbs throughput
  • PTP Time Synchronisation (optional)
  • Supports 10/25/40/50/100Gb/s
    data rates
  • Internal CPU to network ASIC
    connectivity
